Measuring range |
22 ... 136 db(A) |
|
Accuracy |
Class 1 |
|
Frequency range |
3 Hz ... 20 kHz |
|
Standards |
GB/T 3785.1-2010 |
|
Frequency analysis |
1/1 octave band filter: 8 Hz ... 16 kHz |
|
Microphone |
|
|
Data logging interval |
1 s ... 24 h (adjustable) |
|

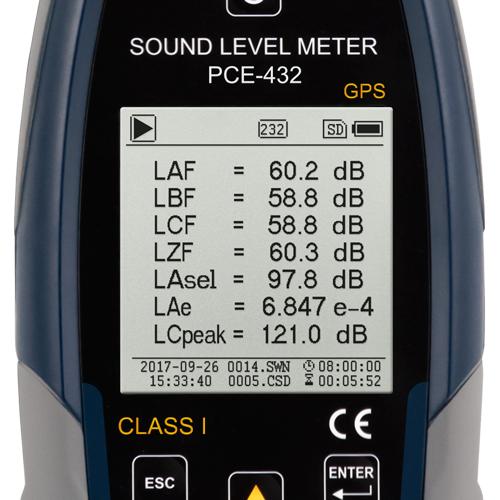

Measurement functions |
LXY (SPL), LXeq, LXYSD, LXSEL, LXE, LXYmax, LXYmin, LXPeak, LXN |
|
X = Frequency Weighting: A, B, C, Z |
|
|
Frequency Weightings |
A, B, C, Z |
|
Time Weightings |
Fast-FAST (F) 125 ms, Slow-SLOW (S) 1 second, Impulse (I) 35 ms |
|
Background Noise |
Microphone: 19 dB(A), 25 dB(C), 31 dB(Z) |
| AD converter |
24 bit |
|
Sampling rate |
Standard: 48 kHz |
|
Measurement display |
Numeric |
|
Display |
Backlit LCD 160 x 160 pixel |
|
Memory |
Micro SD card 4 GB |
|

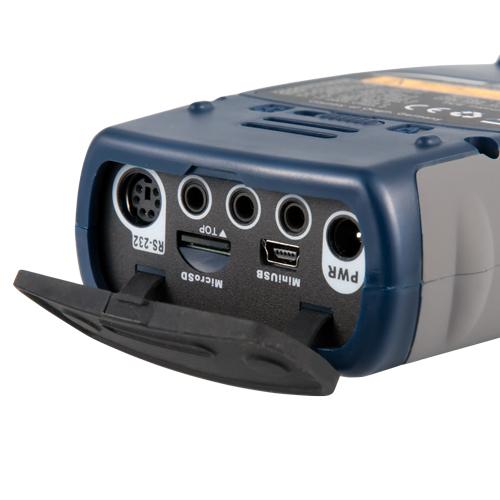

Outputs |
USB |
|
Voltage output |
AC 5V RMS |
|
Alarm |
Adjustable |
| GPS | Built-in |
|
Power supply |
4 x 1.5 V AA batteries |
|
Battery life |
Minimum 10 hours continuous use |
|
Dimensions |
70 x 300 x 36 mm / 2.76 x 11.81 x 1.42" (W x H x D) |
|
Weight |
Approximately 620 g / 1.4 lbs with batteries |
Sound Level Meter PCE-432 (class 1) with GPS with kit/ External noise level meter
/ Octave band filter / A, B, C, and Z weighting with upgrade option / Fast, slow, and pulse time weighting / Data logger / USB

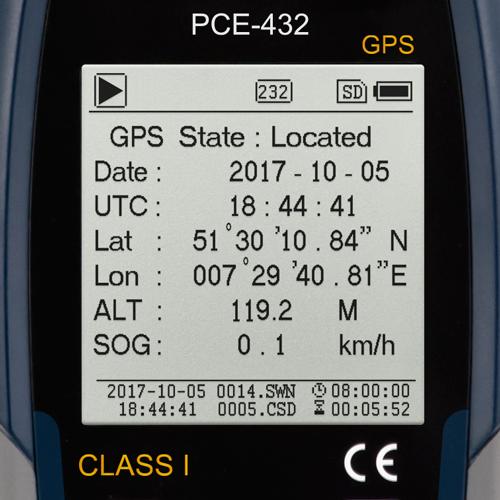

The class 1 sound level meter PCE-432-EKIT meets all the requirements for noise measurement and frequency analysis. Additionally, it is equipped with GPS, which allows the user to associate the measured values with the exact measurement location.

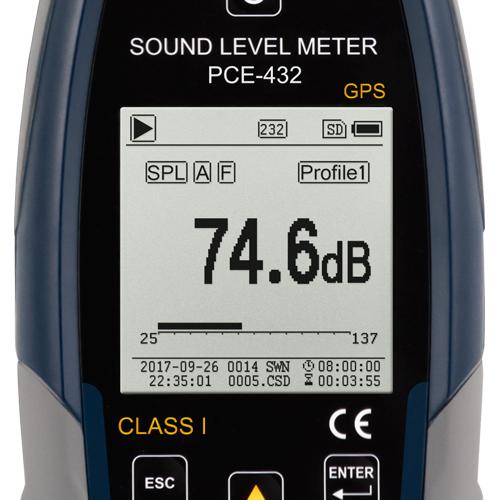

This built-in precision pulse level meter follows all valid standards and guidelines (Class 1 EN/IEC 61672, ANSI S1.4-1983, ANSI S1.43-1997 EN/IEC61260, etc.). The PCE-432 sound level meter features a large illuminated display, where the sound pressure level is shown numerically and graphically in real time. The meter has a built-in data logger as well as a micro SD card, which can be read directly on the computer. Alternatively, the user can connect the sound level meter to the computer via USB for further data processing.

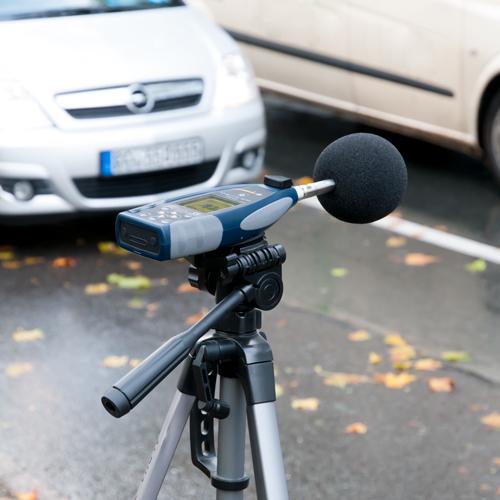

Typical applications of the sound level meter are noise measurement in the workplace, detection of environmental noise, selection of appropriate noise reduction measures, and assessment of noise exposure.
The PULSE function of the PCE-432 allows the user to record short-term sound events. Thanks to the built-in octave band function, even the smallest differences in the frequency band can be detected. The measurement range of this professional sound level meter ranges from 22 ... 136 dB (A) at a frequency of 3 Hz ... 20 kHz.
PCE-4xx-EKIT

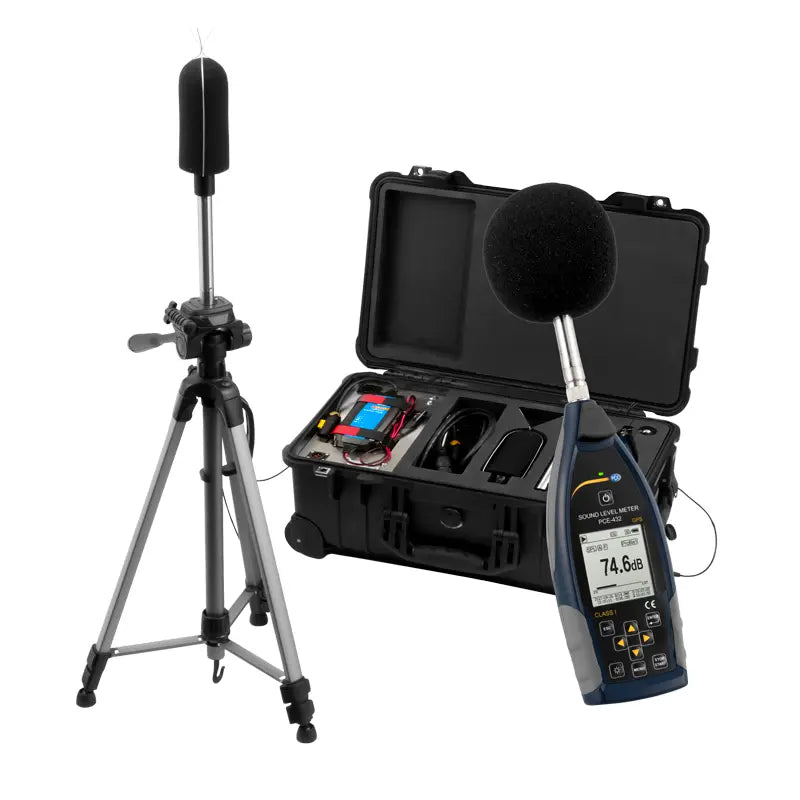

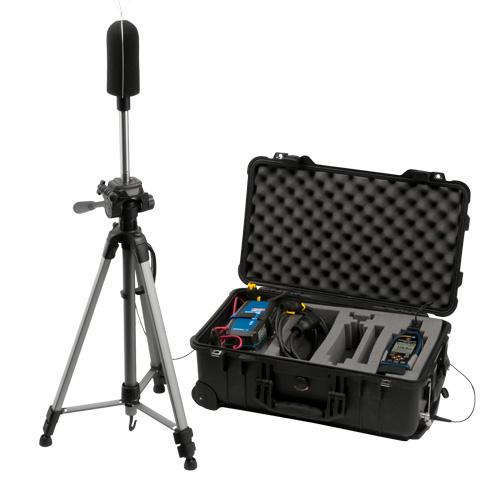

An additional kit for measuring external sound PCE-4xx-EKIT can be combined with the sound level meters PCE-428, 430, or PCE-432. This kit makes it possible to measure external noise with a sound level meter for a long period. The environmental noise monitoring system consists of a waterproof Peli transport case with rollers. A charger and two additional lead gel batteries have been placed in this case, which allow the sound level meter to operate for up to 10 days. During the measurement of external sound, the case can remain closed. Due to the external connections for the microphone and the power supply, all electronic components are protected from water.
The screen insulation provides protection from wind and rain, and the microphone windscreen isolates the measurement from the effect of the wind. The charger of the PCE-4xx-EKIT kit is waterproof and can remain outdoors. Also, a tripod is available with which the microphone can be placed outdoors.
The PCE -4xx–EKIT can be used to measure noise in critical areas such as road surfaces in residential areas, airports, depots, as well as for measuring acoustic events.
- 1/1 octave (optional 1/3 octave)
- Class 1 accuracy

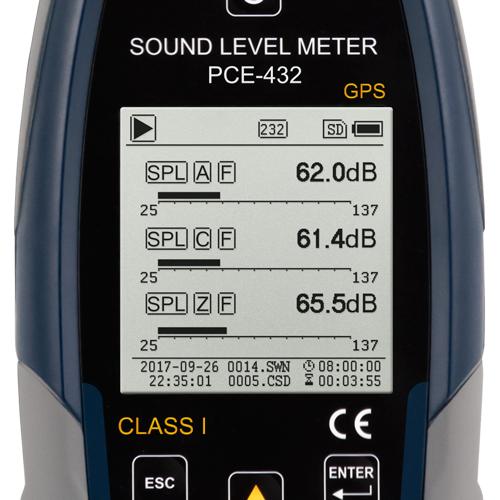

- Frequency weighting A, B, C & Z
- Fast, slow, pulse measurement and peak measurement
- Built-in GPS

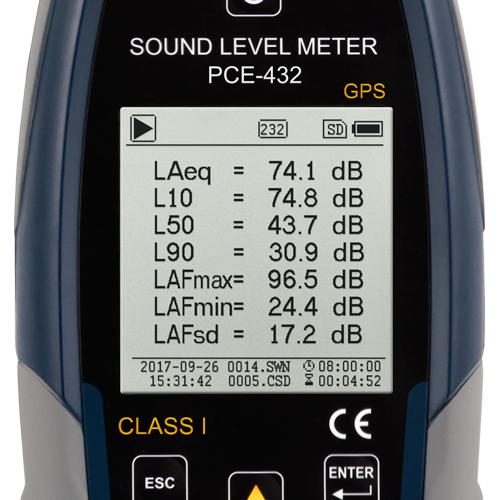

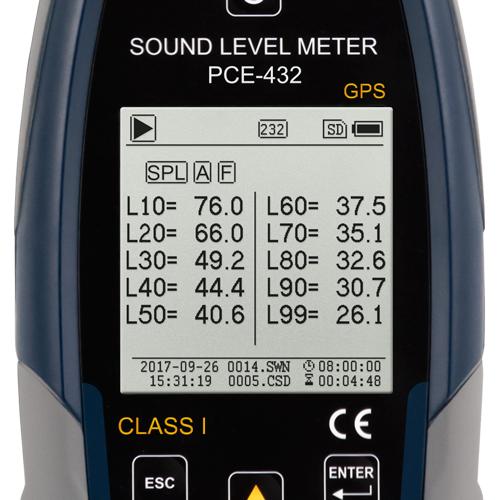

- Statistical function

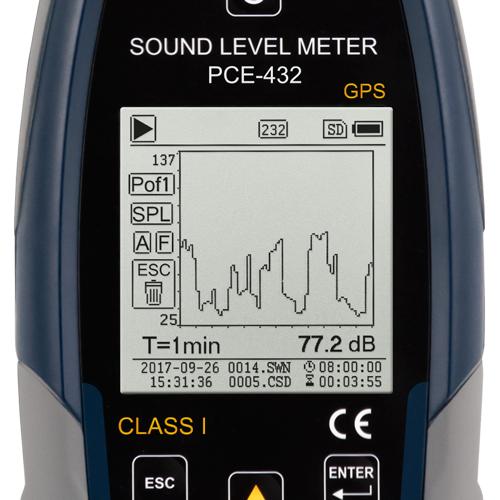

- Real-time graph display
- 3 adjustable measurement profiles
- Low influence of existing noise
- ICCP microphone 40 mV / PA
- Adjustable alarm level

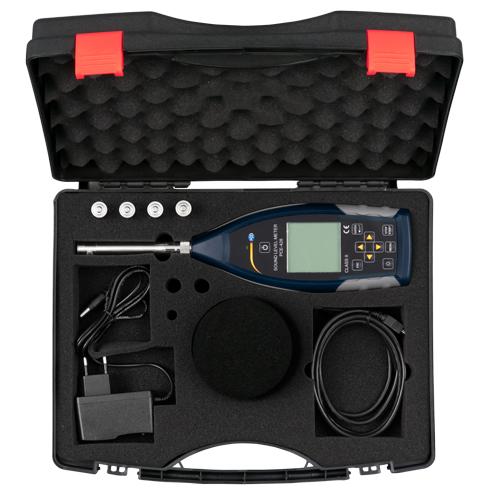

Package contents
1 x External sound level meter PCE-428-EKIT (included. External noise level meter kit)

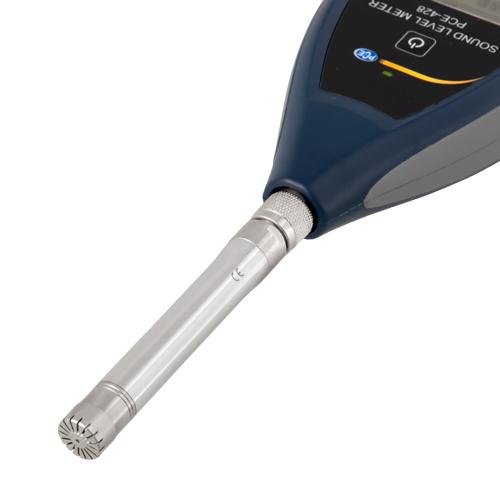

1 x 1/2" class I measurement microphone
1 x Windshield for microphone
1 x USB cable

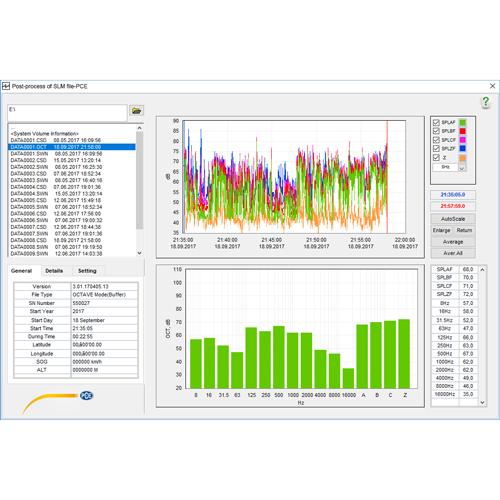

1 x Software
1 x Power Supply
1 x Carrying case
1 x User manual
1 x External sound level meter kit PCE-4xx-EKIT
1 x Waterproof PELI transport case
1 x Wind and rain protection for PCE-4xx series microphone
1 x Charger for internal batteries
2 x 12V batteries
1 x Tripod
1x Microphone cable 1 x 2 m / 6ft
1 x Connection cable for power supply 110 V / 230 V (optional Schuko or USB connection)
1 Year Warranty
PCE Instruments Factory
The PCE Deutschland GmbH, known as PCE Instruments, is a German company based in Meschede, which from 1999 to the present has established itself internationally as a reliable manufacturer and supplier of measuring, testing, and weighing instruments. The company offers an exceptionally wide range of instruments – from vibration, humidity, noise, and temperature meters to precision scales, analyzers, sensors, and data loggers – covering every need in industry, laboratories, and research.
PCE Instruments products are used in a wide range of sectors such as industrial production, quality control, equipment maintenance and assurance, environmental measurement, energy inspection, as well as education and scientific research. With a combination of know-how, reliability, and flexibility, the company provides complete solutions that ensure accurate results and contribute to improving measurement and testing processes in every professional sector.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of PCE Instruments in Greece since 2015. We have a large variety of Pce products in stock, which is continuously increasing. In addition, we can support the entire range of its catalog, which includes more than 5,000 different product codes.
In our store we provide technical support for all PCE Instrumentrs products via trained technicians, while ensuring high availability of spare parts, ensuring prompt service and reliability for our customers.
All of its products meet European specifications, following various international quality and safety standards.
| SKU | Availability |
Price
+VAT
|
Certificate |
Cart
Quote
|
|---|---|---|---|---|
| PCE-432-EKIT | On Order |
+VAT
€5.594,00
|
5-8 business days
|
