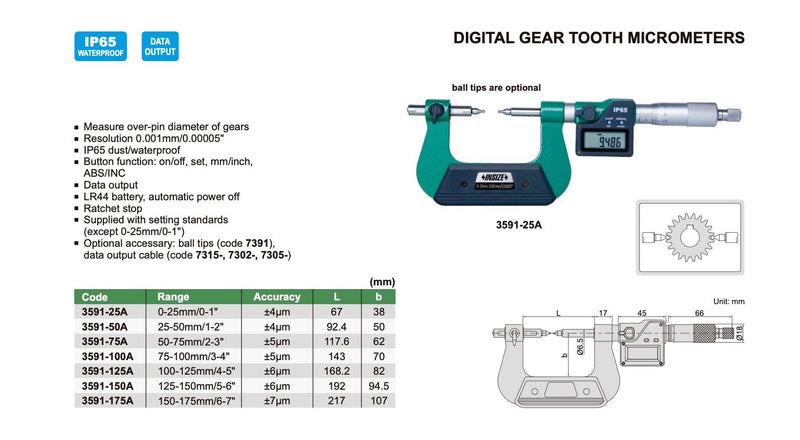

Specifications
- Type: Digital gear tooth micrometer
- Measurement application: gear over-pin diameter measurement
- Resolution: 0.001mm / 0.00005"
- Protection rating: IP65 (dust/waterproof)
- Button functions: on/off, set, mm/inch, ABS/INC
- Data output: available
- Function: automatic power off
- Mechanism: ratchet stop
- Included: setting standards supplied (except 0-25mm/0-1")
- Optional: ball tips (code 7391), data output cable (code 7315-30, 7302-30)
Description

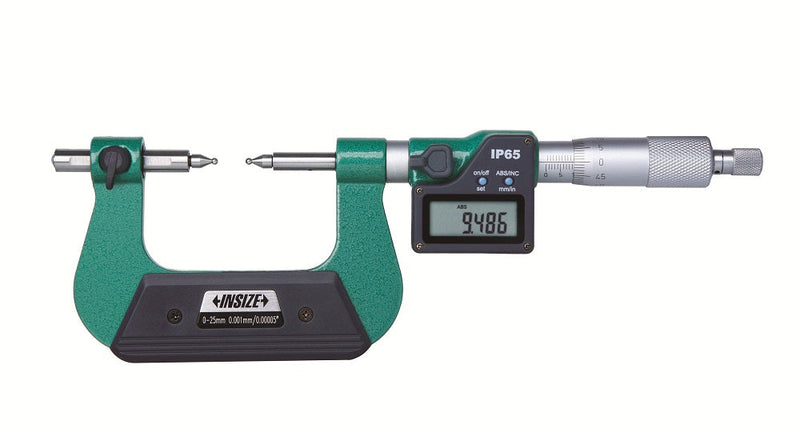

IP65 digital gear tooth micrometer designed to measure the over-pin diameter of gears. It provides 0.001mm resolution, mm/inch selection, ABS/INC modes, and data output for recording or transferring measurements. Suitable for gear inspection and quality control in machining and metrology environments.
| Code | Range | Reading | Availability | Price excl. VAT | Certificate | Cart |
|---|---|---|---|---|---|---|
| 3591-25A | 0-25 | 0.01 |
€336,00
|
|||
| 3591-50A | 25-50 | 0.01 |
€364,00
|
|||
| 3591-75A | 50-75 | 0.01 |
€387,00
|
|||
| 3591-100A | 75-100 | 0.01 |
€410,00
|
|||
| 3591-125A | 100-125 | 0.01 |
€435,00
|
|||
| 3591-150A | 125-150 | 0.01 |
€450,00
|
|||
| 3591-175A | 150-175 | 0.01 |
€486,00
|
