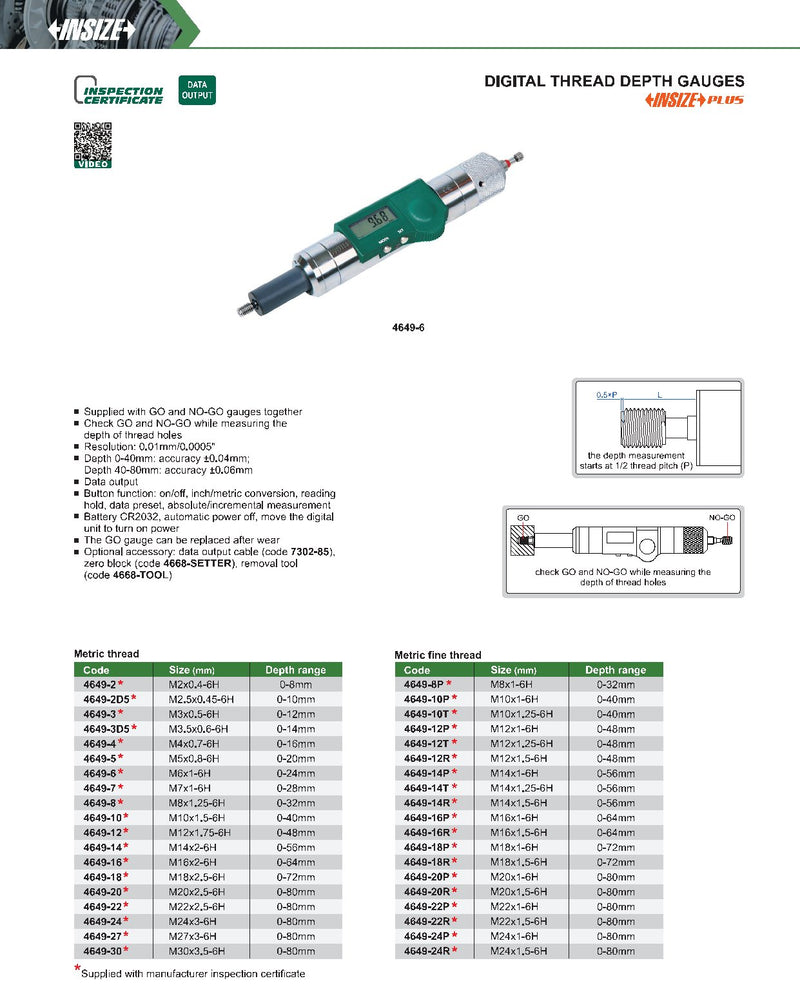

Specifications
- Type: Digital thread depth gauge
- Model codes (family): 4649-2, 4649-2D5, 4649-3, 4649-4, 4649-5, 4649-6, 4649-7, 4649-8, 4649-8P, 4649-10, 4649-10P, 4649-10T, 4649-12, 4649-12P, 4649-12R, 4649-12T, 4649-14, 4649-14R, 4649-14T, 4649-16, 4649-16R, 4649-18, 4649-18R, 4649-27, 4649-30
- Resolution: 0.01 mm / 0.0005"
- Depth range (by model): 0–8 mm up to 0–80 mm
- Accuracy: ±0.04 mm (depth 0–40 mm), ±0.06 mm (depth 40–80 mm)
- GO / NO-GO: Supplied with GO and NO-GO gauges (check GO and NO-GO while measuring)
- Data output: Yes
- Button functions: on/off, inch/metric conversion, reading hold, data preset, absolute/incremental measurement
- Battery: CR2032
- Power saving: Automatic power off
- Power on: Move the digital unit to turn on power
- Serviceability: GO gauge can be replaced after wear
- Certificate: Supplied with manufacturer inspection certificate
- Optional accessories: data output cable (7302-85), zero block (4668-SETTER), removal tool (4668-TOOL)
- Measurement note: Depth measurement starts at 1/2 thread pitch (P)
- Threads covered (family): Metric & metric fine, typical sizes from M2x0.4-6H up to M30x3.5-6H (by model)
Description

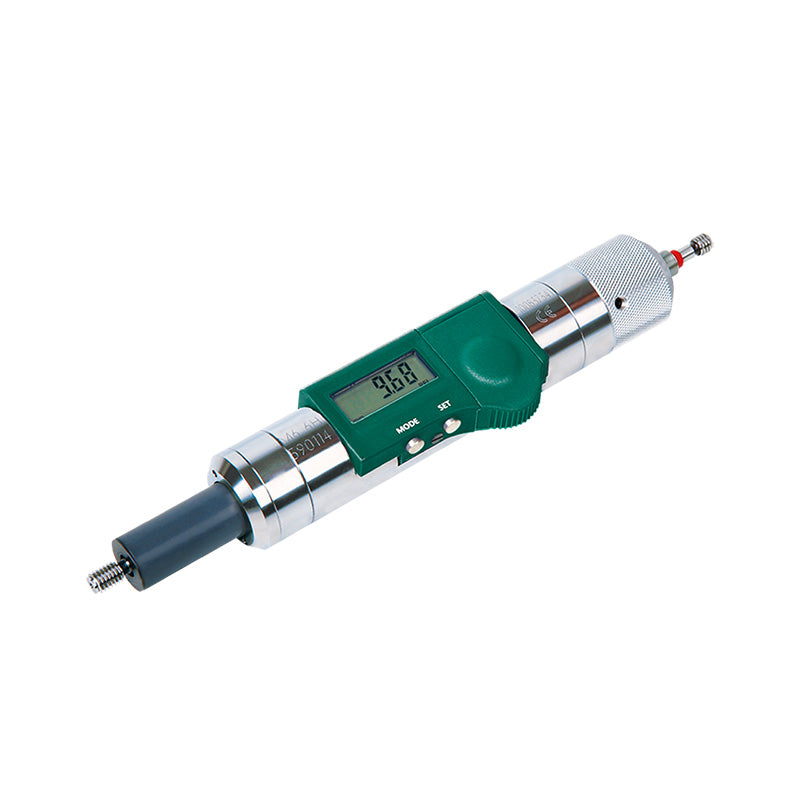

The INSIZE 4649 series digital thread depth gauge is used to measure the depth of threaded holes. It provides a 0.01 mm digital readout with inch/metric conversion and data output, and it is supplied with GO and NO-GO gauges to verify acceptance while measuring.
| Code | Size mm | Resolution | Depth range | Availability | Price excl. VAT | Cart |
|---|---|---|---|---|---|---|
| 4649-2 | M2x0.4-6H | 0.01mm/0.0005" | 0-8mm | On Order |
€2.553,00
|
|
| 4649-2D5 | M2.5x0.45-6H | 0.01mm/0.0005" | 0-10mm | On Order |
€2.519,00
|
|
| 4649-3 | M3x0.5-6H | 0.01mm/0.0005" | 0-12mm | On Order |
€2.486,00
|
|
| 4649-4 | M4x0.7-6H | 0.01mm/0.0005" | 0-16mm | On Order |
€2.503,00
|
|
| 4649-5 | M5x0.8-6H | 0.01mm/0.0005" | 0-20mm | On Order |
€2.469,00
|
|
| 4649-6 | M6x1-6H | 0.01mm/0.0005" | 0-24mm | On Order |
€2.438,00
|
|
| 4649-7 | M7x1-6H | 0.01mm/0.0005" | 0-28mm | On Order |
€2.607,00
|
|
| 4649-8P | M8x1-6H | 0.01mm/0.0005" | 0-32mm | On Order |
€2.593,00
|
|
| 4649-8 | M8x1.25-6H | 0.01mm/0.0005" | 0-32mm | On Order |
€2.581,00
|
|
| 4649-10 | M10x1.5-6H | 0.01mm/0.0005" | 0-40mm | On Order |
€2.594,00
|
|
| 4649-10P | M10x1-6H | 0.01mm/0.0005" | 0-40mm | On Order |
€2.607,00
|
|
| 4649-10T | M10x1.25-6H | 0.01mm/0.0005" | 0-40mm | On Order |
€2.636,00
|
|
| 4649-12R | M12x1.5-6H | 0.01mm/0.0005" | 0-48mm | On Order |
€3.086,00
|
|
| 4649-12P | M12x1-6H | 0.01mm/0.0005" | 0-48mm | On Order |
€3.107,00
|
|
| 4649-12T | M12x1.25-6H | 0.01mm/0.0005" | 0-48mm | On Order |
€3.136,00
|
|
| 4649-12 | M12x1.75-6H | 0.01mm/0.0005" | 0-48mm | On Order |
€3.095,00
|
|
| 4649-14R | M14x1.5-6H | 0.01mm/0.0005" | 0-56mm | On Order |
€3.129,00
|
|
| 4649-14 | M14x2-6H | 0.01mm/0.0005" | 0-56mm | On Order |
€3.139,00
|
|
| 4649-16R | M16x1.5-6H | 0.01mm/0.0005" | 0-64mm | On Order |
€3.221,00
|
|
| 4649-16 | M16x2-6H | 0.01mm/0.0005" | 0-64mm | On Order |
€3.240,00
|
|
| 4649-18R | M18x1.5-6H | 0.01mm/0.0005" | 0-72mm | On Order |
€3.264,00
|
|
| 4649-18 | M18x2.5-6H | 0.01mm/0.0005" | 0-72mm | On Order |
€3.284,00
|
|
| 4649-27 | M27x3-6H | 0.01mm/0.0005" | 0-80mm | On Order |
€7.165,00
|
|
| 4649-30 | M30x3.5-6H | 0.01mm/0.0005" | 0-80mm | On Order |
€7.252,00
|
