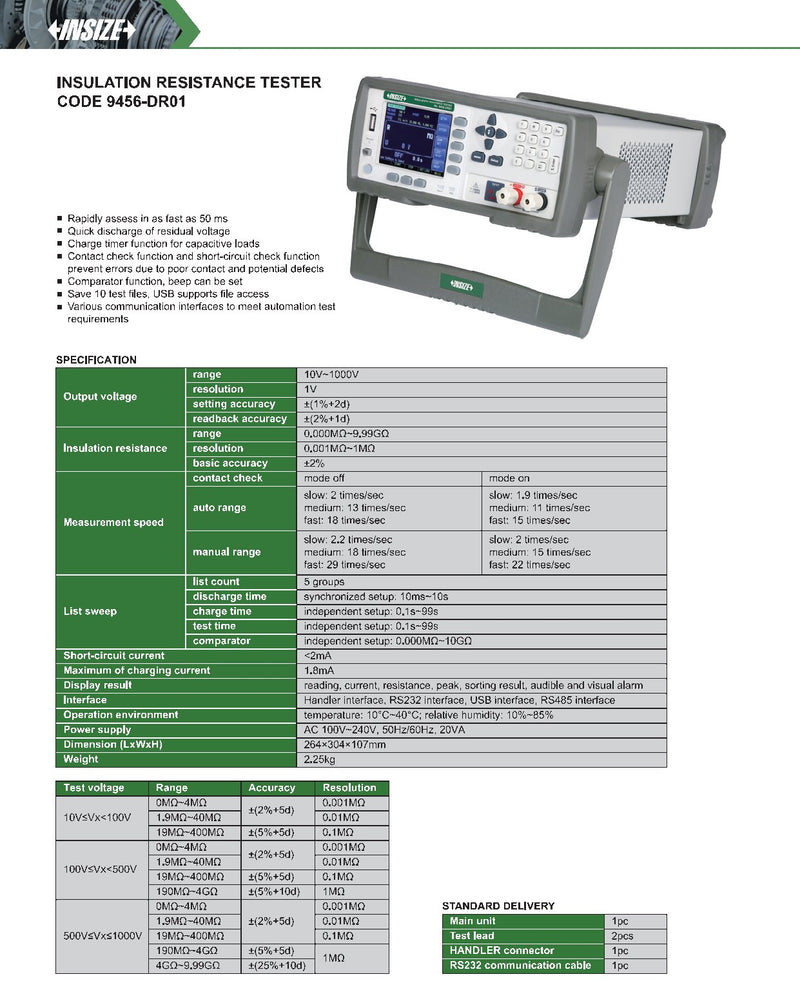

Specifications
- Instrument type: Insulation resistance tester
- Code: 9456-DR01
- Output voltage (insulation voltage): 10V~1000V
- Output voltage resolution: 1V
- Voltage setting accuracy: ±(1%+2d)
- Voltage readback accuracy: ±(2%+1d)
- Insulation resistance range: 0.000MΩ~9.99GΩ
- Insulation resistance resolution: 0.001MΩ~1MΩ (depending on range)
- Basic insulation resistance accuracy: ±2%
- Functions: contact check, short-circuit check, quick discharge of residual voltage, charge timer for capacitive loads, comparator with configurable beep, save up to 10 test files, USB file access
- Fast assessment time: as fast as 50 ms
- List sweep: 5 groups, discharge time (synchronized setup) 10ms~10s, charge time (independent setup) 0.1s~99s, test time (independent setup) 0.1s~99s, comparator (independent setup) 0.000MΩ~10GΩ
- Short-circuit current: <2mA
- Maximum charging current: 1.8mA
- Display results: reading, current, resistance, peak, sorting result, audible and visual alarm
- Interfaces: Handler interface, RS232 interface, USB interface, RS485 interface
- Operating environment: 10°C~40°C, 10%~85%RH
- Power supply: AC 100V~240V, 50Hz/60Hz, 20VA
- Dimensions (L×W×H): 264×304×107mm
- Weight: 2.25kg
- Standard delivery: main unit 1pc, test lead 2pcs, HANDLER connector 1pc, RS232 communication cable 1pc
Description

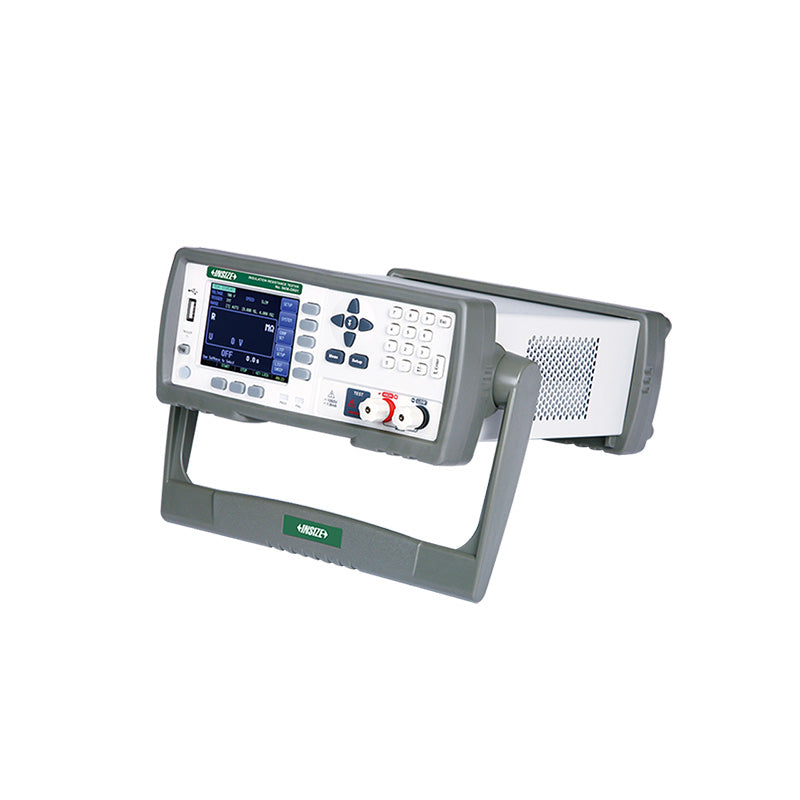

The 9456-DR01 is an insulation resistance tester used to verify insulation quality in electrical components, cables, motors, transformers, and assemblies. It provides an adjustable 10V~1000V test voltage and measures insulation resistance up to 9.99GΩ, with contact/short-circuit checks, quick discharge, and RS232/USB/RS485 interfaces for automated test setups.
