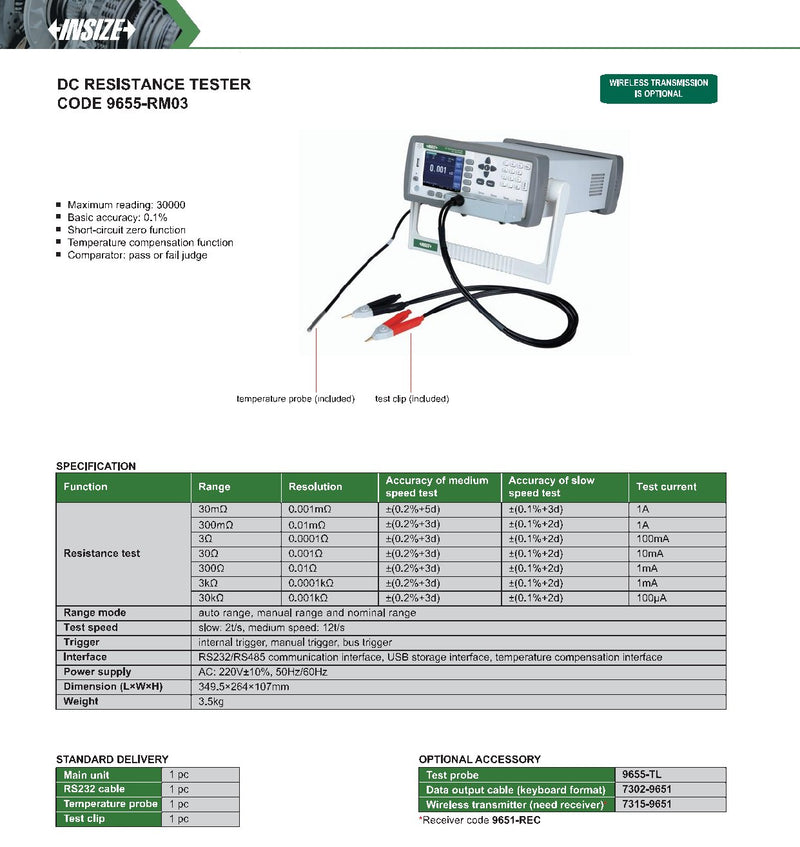

Specifications
- Type: DC Resistance Tester (INSIZE)
- Code/Model: 9655-RM03
- Measuring range: 30mΩ to 30kΩ
- Maximum reading: 30000
- Basic accuracy: 0.1%
- Resolution (by range): 0.001mΩ / 0.01mΩ / 0.0001Ω / 0.001Ω / 0.01Ω / 0.0001kΩ / 0.001kΩ
- Accuracy (medium speed test): ±(0.2%+5d) at 30mΩ, ±(0.2%+3d) on other ranges
- Accuracy (slow speed test): ±(0.1%+3d) at 30mΩ, ±(0.1%+2d) on other ranges
- Test current (by range): 1A (30mΩ, 300mΩ), 100mA (3Ω), 10mA (30Ω), 1mA (300Ω, 3kΩ), 100μA (30kΩ)
- Functions: short-circuit zero, temperature compensation, comparator (pass/fail)
- Range mode: auto range, manual range, nominal range
- Test speed: slow: 2t/s, medium speed: 12t/s
- Trigger: internal trigger, manual trigger, bus trigger
- Interfaces: RS232/RS485 communication, USB storage, temperature compensation interface
- Power supply: AC 220V±10%, 50Hz/60Hz
- Dimensions (L×W×H): 349.5 × 264 × 107mm
- Weight: 3.5kg
- Standard delivery: main unit, RS232 cable, temperature probe, test clip
- Optional accessories: test probe 9655-TL, data output cable (keyboard format) 7302-9651, wireless transmitter 7315-9651 (receiver 9651-REC required)
- Wireless transmission: optional
Description

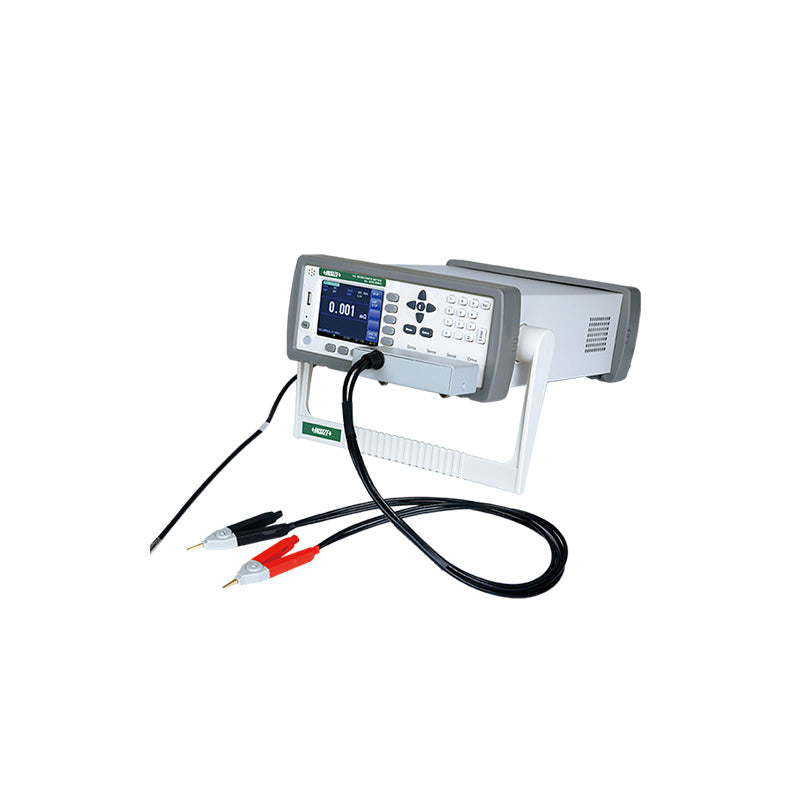

The 9655-RM03 is a DC resistance tester for accurate low-to-mid resistance measurements (30mΩ to 30kΩ) on components, connections, cables, and coils. It includes short-circuit zeroing, temperature compensation, and a pass/fail comparator, plus RS232/RS485 communication and USB storage support.
| Code | Range | Basic accuracy | Data transmission | Availability | Price excl. VAT | Certificate | Cart |
|---|---|---|---|---|---|---|---|
| 9655-RM03 | 30kΩ | 0.1% | no | On Order |
€1.076,00
|
