Specifications
- Type: HSS Step Point drill bit for sheet metal (short series)
- Material: High Speed Steel (HSS)
- Standard: DIN 338 N
- Point angle: 118° Step Point
- Point geometry: Split Point
- Helix angle: 30°
- Shank: 3 plane shank (3 flats)
- Diameter Ø (mm): 3.00 ~ 13.00
- Overall length L (mm): 61 ~ 151
- Flute length l (mm): 33 ~ 101
- Length l1 (mm): 1.9 ~ 14.7
- Work materials: soft magnetic steels, construction and cementation steels, non-alloy and alloy carbon steels up to 800 N/mm² strength
Description

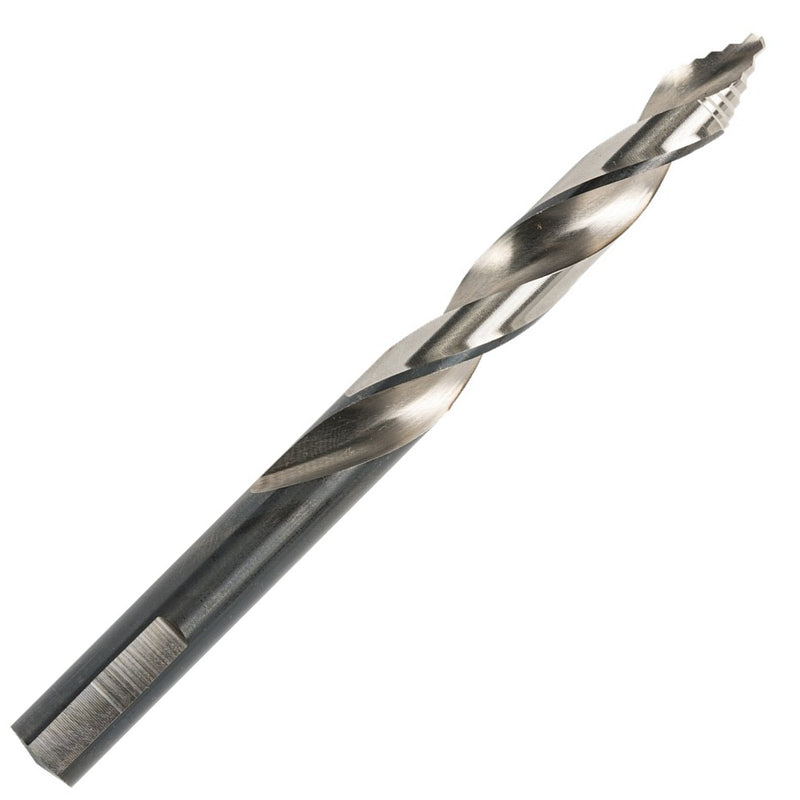

HSS Step Point drill bits (DIN 338 N) for drilling sheet metal and steel parts, featuring a 118° Step Point and Split Point for easier starting and more stable, centered drilling. Suitable for steels up to 800 N/mm², with a 30° helix and a 3 plane shank for improved chuck grip.

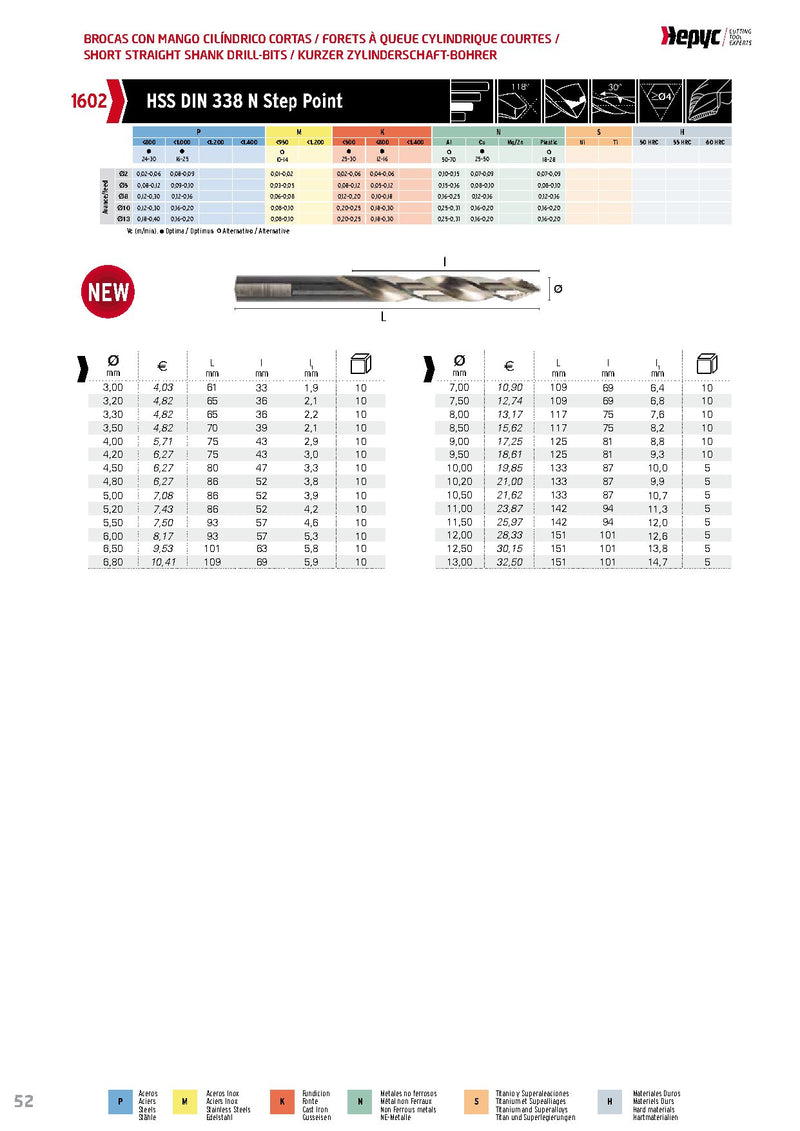

| Code | Ø mm | L mm | l mm | Availability | Price excl. VAT | Cart |
|---|---|---|---|---|---|---|
| 16020000300 | 3 | 61 | 33 | 5-8 business days |
€2,50
|
|
| 16020000320 | 3,2 | 65 | 36 | 5-8 business days |
€3,00
|
|
| 16020000330 | 3,3 | 70 | 39 | 5-8 business days |
€3,00
|
|
| 16020000350 | 3,5 | 70 | 39 | 5-8 business days |
€3,00
|
|
| 16020000400 | 4 | 75 | 43 | 5-8 business days |
€3,60
|
|
| 16020000420 | 4,2 | 75 | 43 | 5-8 business days |
€4,00
|
|
| 16020000450 | 4,5 | 80 | 47 | 5-8 business days |
€4,00
|
|
| 16020000500 | 5 | 86 | 52 | 5-8 business days |
€4,50
|
|
| 16020000520 | 5,2 | 86 | 52 | 5-8 business days |
€4,70
|
|
| 16020000550 | 5,5 | 93 | 57 | 5-8 business days |
€4,70
|
|
| 16020000600 | 6 | 93 | 57 | 8 available |
€5,10
|
|
| 16020000650 | 6,5 | 101 | 63 | 5-8 business days |
€6,00
|
|
| 16020000680 | 6,8 | 109 | 69 | 5-8 business days |
€6,60
|
|
| 16020000700 | 7 | 109 | 69 | 5-8 business days |
€6,90
|
|
| 16020000750 | 7,5 | 109 | 69 | 5-8 business days |
€8,00
|
|
| 16020000800 | 8 | 117 | 75 | 5-8 business days |
€8,30
|
|
| 16020000850 | 8,5 | 117 | 75 | 5-8 business days |
€9,80
|
|
| 16020000900 | 9 | 125 | 81 | 5-8 business days |
€10,90
|
|
| 16020000950 | 9,5 | 125 | 81 | 5-8 business days |
€11,70
|
|
| 16020001000 | 10 | 133 | 87 | 3 available |
€12,50
|
|
| 16020001020 | 10,2 | 133 | 87 | 5-8 business days |
€13,20
|
|
| 16020001050 | 10,5 | 133 | 87 | 5-8 business days |
€13,60
|
|
| 16020001100 | 11 | 142 | 94 | 5-8 business days |
€15,00
|
|
| 16020001150 | 11,5 | 142 | 94 | 5-8 business days |
€16,40
|
|
| 16020001200 | 12 | 151 | 101 | 5-8 business days |
€17,80
|
|
| 16020001250 | 12,5 | 151 | 101 | 5-8 business days |
€19,00
|
|
| 16020001300 | 13 | 151 | 101 | 5-8 business days |
€20,50
|
