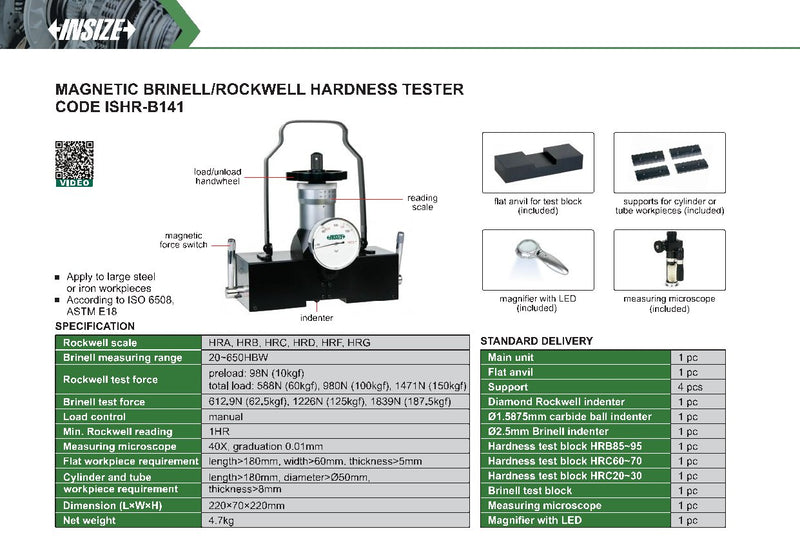

Specifications
- Type: Magnetic Brinell/Rockwell hardness tester
- Rockwell scales: HRA, HRB, HRC, HRD, HRF, HRG
- Brinell measuring range: 20~650HBW
- Rockwell test force: preload 98N (10kgf), total load 588N (60kgf), 980N (100kgf), 1471N (150kgf)
- Brinell test force: 612.9N (62.5kgf), 1226N (125kgf), 1839N (187.5kgf)
- Load control: manual
- Min. Rockwell reading: 1HR
- Measuring microscope: 40X, graduation 0.01mm
- Flat workpiece requirement: length>180mm, width>60mm, thickness>5mm
- Cylinder/tube workpiece requirement: length>180mm, diameter>Ø50mm, thickness>8mm
- Dimensions (L×W×H): 220×70×220mm
- Net weight: 4.7kg
- Standards: ISO 6508, ASTM E18
- Standard delivery: main unit (1 pc), flat anvil (1 pc), support (4 pcs), diamond Rockwell indenter (1 pc), Ø1.5875mm carbide ball indenter (1 pc), Ø2.5mm Brinell indenter (1 pc), hardness test block HRB85~95 (1 pc), hardness test block HRC60~70 (1 pc), hardness test block HRC20~30 (1 pc), Brinell test block (1 pc), measuring microscope (1 pc), magnifier with LED (1 pc)
Description

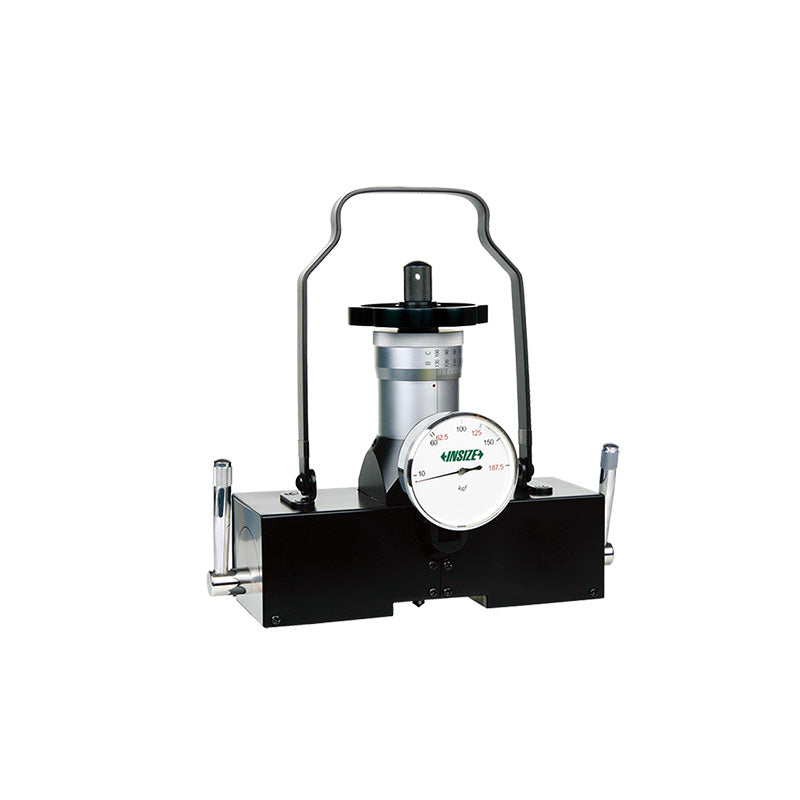

The ISHR-B141 is a magnetic Brinell/Rockwell hardness tester for checking hardness on large steel or cast iron workpieces. It uses manual load application and supports multiple Rockwell scales as well as Brinell measurement, with a measuring microscope for reading the indentation.
| Code | Range | Scale | Availability | Price excl. VAT | Certificate | Cart |
|---|---|---|---|---|---|---|
| ISHR-B141 | brinell: 20~650HBW | rockwell: HRA, HRB, HRC, HRD, HRF, HRG | On Order |
€6.293,00
|
