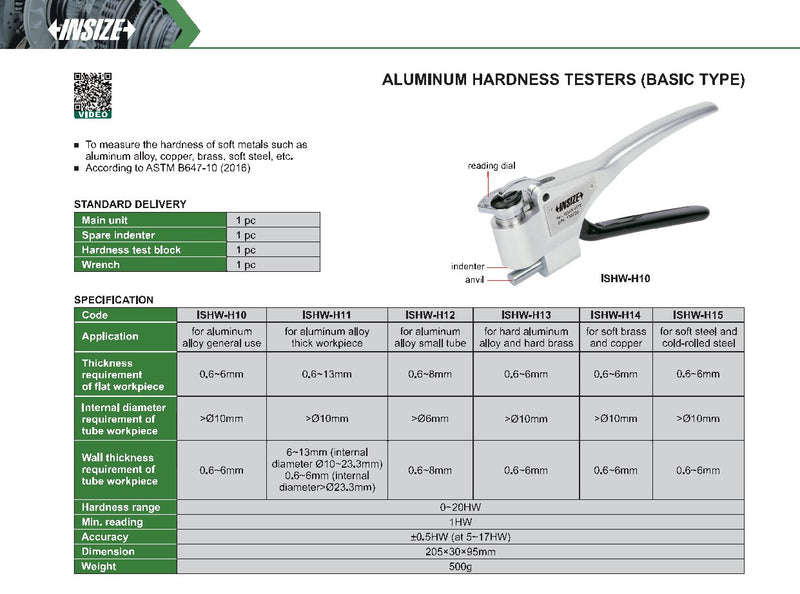

Specifications
- Type: Aluminum hardness tester (basic type) with reading dial
- Model codes: ISHW-H10, ISHW-H11, ISHW-H12, ISHW-H13, ISHW-H14, ISHW-H15
- Application (by model): general use for aluminum alloy / thick aluminum alloy workpiece / small aluminum alloy tube / hard aluminum alloy & hard brass / soft brass & copper / soft steel & cold-rolled steel
- Thickness requirement of flat workpieces: 0.6~6mm to 0.6~13mm (depending on model)
- Internal diameter requirement of tube workpiece: >Ø6mm to >Ø10mm (depending on model)
- Wall thickness requirement of tube workpiece: 0.6~6mm to 0.6~8mm (depending on model) • for ISHW-H11: 6~13mm (internal diameter Ø10~23.3mm) or 0.6~6mm (internal diameter >Ø23.3mm)
- Hardness range: 0~20HW
- Min. reading: 1HW
- Accuracy: ±0.5HW (at 5~17HW)
- Dimensions: 205×30×95mm
- Weight: 500g
- Standard: ASTM B647-10 (2016)
- Standard delivery: main unit (1 pc), spare indenter (1 pc), hardness test block (1 pc), wrench (1 pc)
Description

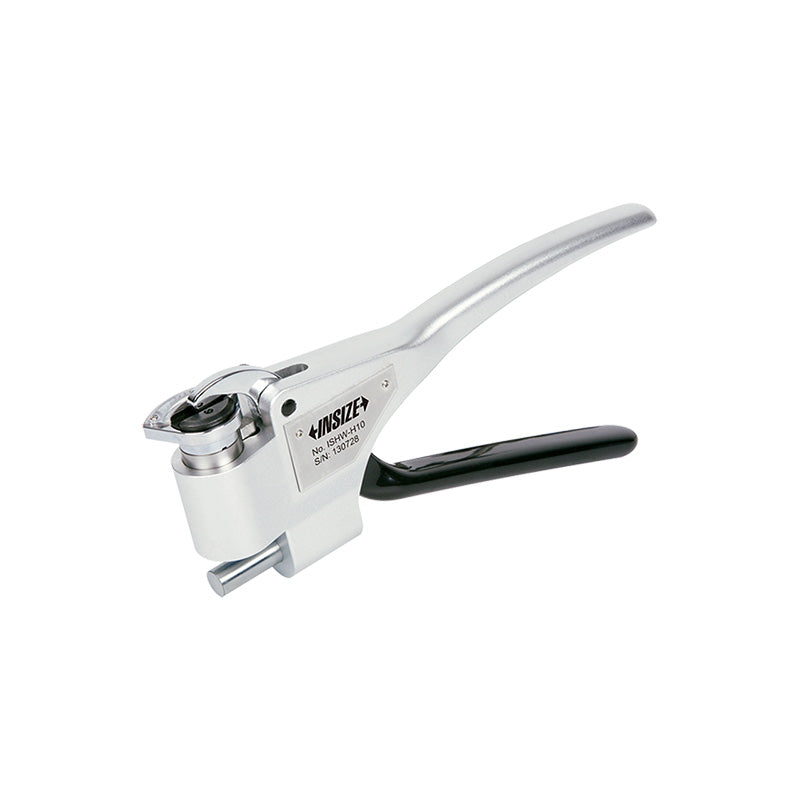

The ISHW-H10~H15 aluminum hardness tester series is used for quick HW hardness measurements on soft metals such as aluminum alloy, copper, brass, and soft steel. Depending on the model, it supports checks on flat workpieces and tube workpieces, with dial indication, in accordance with ASTM B647-10 (2016).
| Code | Application | Thickness requirement of flat workpieces | Availability | Price excl. VAT | Certificate | Cart |
|---|---|---|---|---|---|---|
| ISHW-H10 | for aluminum alloy general use | 0.6~6mm | On Order |
€1.474,00
|
||
| ISHW-H13 | for hard aluminum alloy and hard brass | 0.6~6mm | On Order |
€1.474,00
|
||
| ISHW-H14 | for soft brass and copper | 0.6~6mm | On Order |
€1.474,00
|
||
| ISHW-H15 | for soft steel and cold-rolled steel | 0.6~6mm | On Order |
€1.474,00
|
||
| ISHW-H12 | for aluminum alloy small tube | 0.6~8mm |
5-8 business days
Αποθήκη Insize: 1 available.
Estimated delivery 5–8 business days.Details
Αποθήκη Insize: 1 available.
Estimated delivery 5–8 business days.
|
€1.836,00
|
||
| ISHW-H11 | for aluminum alloy thick workpiece | 0.6~13mm | On Order |
€1.836,00
|
