Specifications
| Parameter | Value |
|---|---|
| Resistance | |
| Measurement range up to | 0 ... 60000 microΩ |
| Resolution | 1 microΩ |
| Accuracy | ±0.25 % of Rd +25 digits (@ 23 ±5 °C) |
| Resistance | |
| Measurement range up to | 60000 microΩ ... 600 mΩ |
| Resolution | 10 microΩ |
| Accuracy | ±0.25 % of Rd +25 digits (@ 23 ±5 °C) |
| Resistance | |
| Measurement range up to | 600 ... 6000 mΩ |
| Resolution | 100 microΩ |
| Accuracy | ±0.25 % of Rd +25 digits (@ 23 ±5 °C) |
| Resistance | |
| Measurement range up to | 6000 ... 60000 mΩ |
| Resolution | 1000 microΩ |
| Accuracy | ±0.25 % of Rd +25 digits (@ 23 ±5 °C) |
| Resistance | |
| Measurement range up to | 60000 mΩ ... 600 Ω |
| Resolution | 10 mΩ |
| Accuracy | ±0.25 % of Rd +25 digits (@ 23 ±5 °C) |
| Resistance | |
| Measurement range up to | 600 ... 6000 Ω |
| Resolution | 100 mΩ |
| Accuracy | ±0.75 % of Rd +3 digits (@ 23 ±5 °C) |
| General technical data | |
| Measuring functions | HOLD |
| Display type | LCD with backlight |
| Display size | 3.3 Inch |
| Interface | RS232 |
| Standard(s) | EN 61010-1, EN 61325-1 |
| Measuring method | 4-wire method for mΩ measurement |
| Test current |
10 A: 60000 microΩ 1 A: 600 mΩ 100 mA: 6000 mΩ 10 mA: 60000 mΩ 1 mA: 600 Ω 100 microA: 6000 Ω |
| Fuse(s) | 10 A / 250 V |
| Menu language | English, English (GB) |
| Protection class (device) | IP30 |
| Power supply | 100 ... 240 V AC | 47/63 Hz |
| Connector type | Schuko plug |

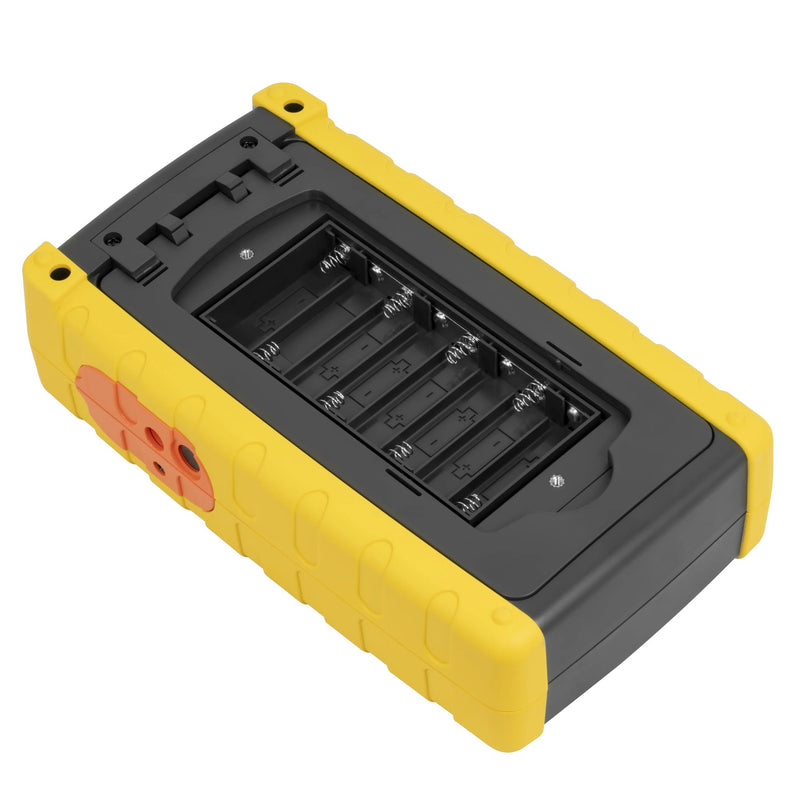

| (Rechargeable) battery | 8 x 1.5 V AA battery, Zinc carbon |
| Capacity | 1200 mAh |
| Operating conditions | 0 ... 50 °C, 0 ... 80 % RH |
| Storage conditions | 0 ... 50 °C, 0 ... 80 % RH |
| Dimensions (L x W x H) | 220 x 125 x 64 mm |
| Weight | 777 g |
Description

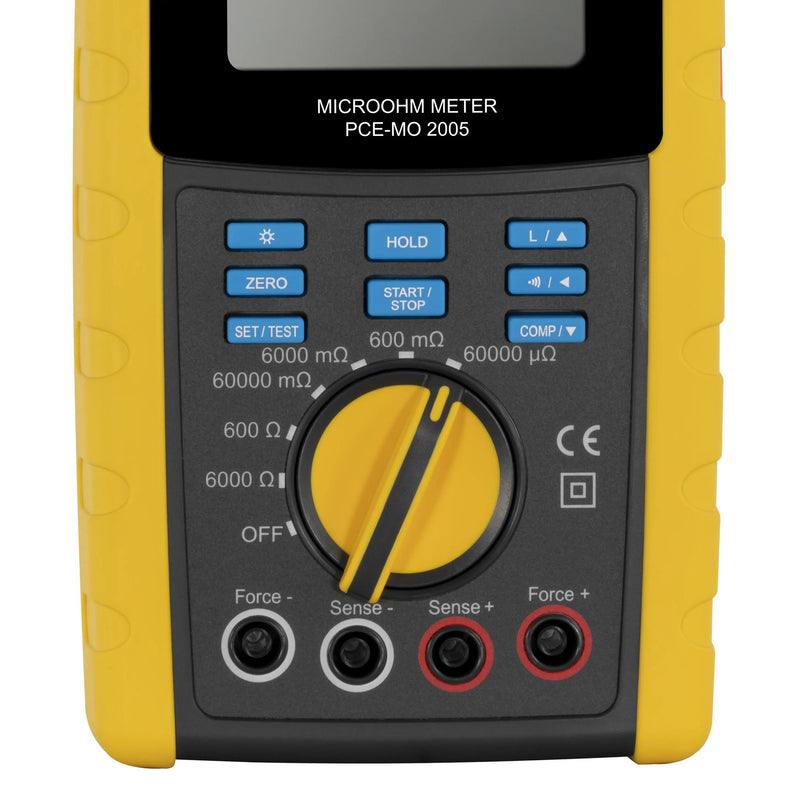

Milliohmmeter / 6 selectable measurement ranges / cable length calculation possible / 4-wire measuring method / mains and battery operation

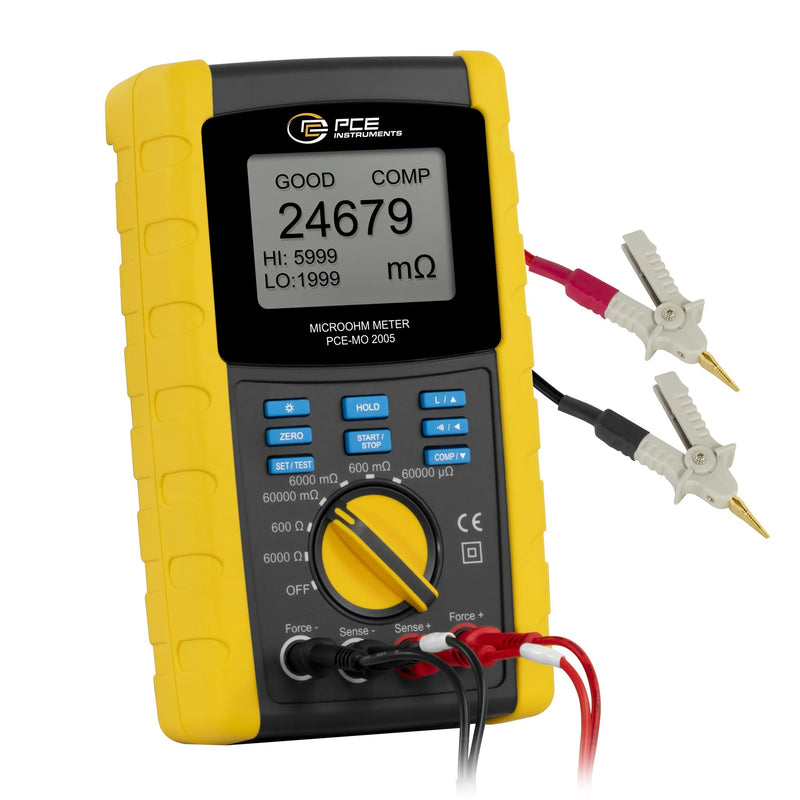

The Milliohmmeter with a measurement range from 0 µΩ to 6000 Ω precisely measures the smallest resistances and is used to check critical connections in electronics and electrical engineering. The Milliohmmeter offers 6 selectable measurement ranges, uses the 4-wire measuring method and can measure both resistance and inductance. The device provides a maximum test current of 10 A within the range of 60000 µΩ and offers test currents of 10 A, 1 A, 100 mA, 10 mA and 1 mA. The 3.3-inch LC display has a backlight that can be activated and switches off automatically after 30 seconds to save battery power.
In addition, the Milliohmmeter has a comparison function that enables a quick pass/fail display and speeds up the evaluation of the test results. The cable length can be calculated by entering the resistance per metre, which provides precise results when determining the cable length. The integrated overvoltage protection protects the device from damage caused by high voltages, while the option for battery or mains operation offers flexibility in use. These features make the Milliohmmeter a versatile and practical tool for a wide range of applications.

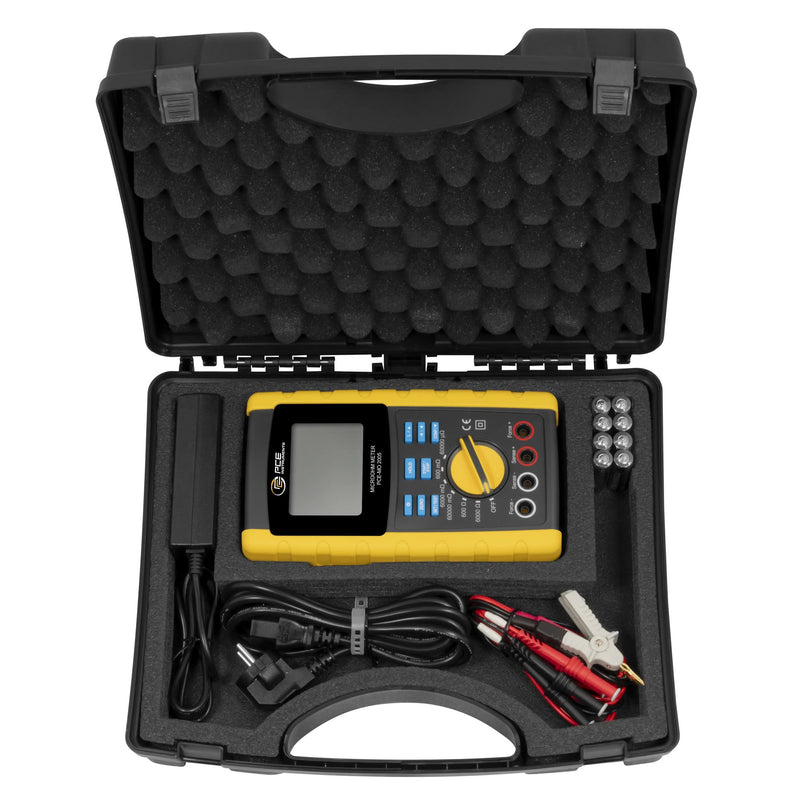

Delivery Scope
- 1 x Milliohmmeter PCE-MO 2005

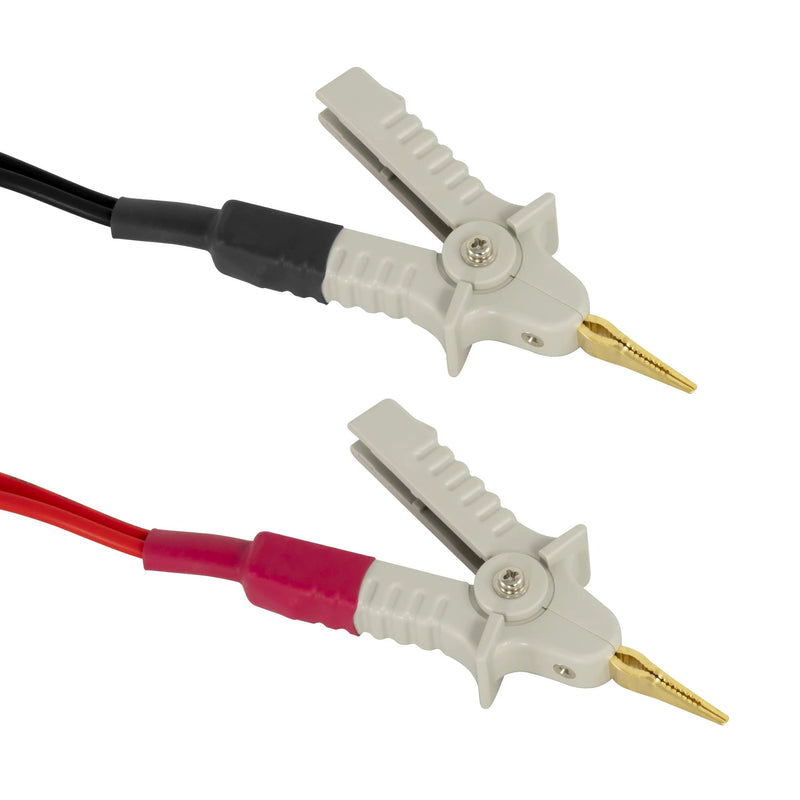

- 2 x 80 cm test leads with Kelvin clamps
- 8 x AA 1.5 V batteries
- 1 x mains adaptor 9 V, 3 A
- 1 x IEC cable
- 1 x carrying case
- 1 x user manual
