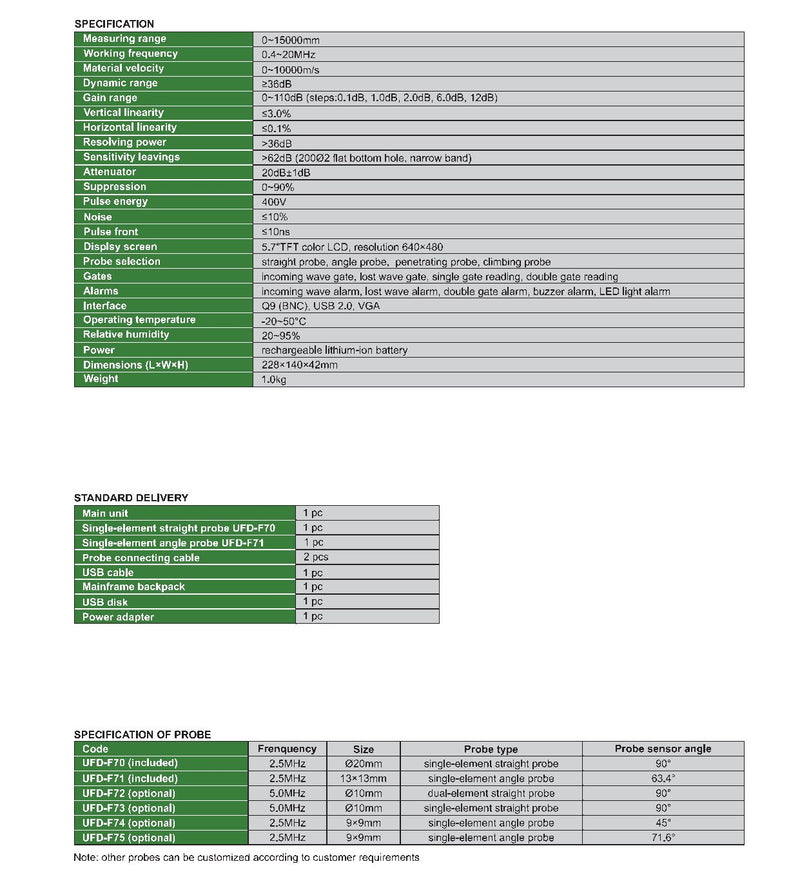

Specifications
- Model/Code: UFD-F720
- Measuring range: 0~15000mm
- Working frequency: 0.4~20MHz
- Material velocity: 0~10000m/s
- Dynamic range: ≥36dB
- Gain range: 0~110dB (steps: 0.1dB, 1.0dB, 2.0dB, 6.0dB, 12dB)
- Vertical linearity: ≤3.0%
- Horizontal linearity: ≤0.1%
- Resolving power: >36dB
- Sensitivity leavings: >62dB (2000Ω2 flat bottom hole, narrow band)
- Attenuator: 20dB±1dB
- Suppression: 0~90%
- Pulse energy: 400V
- Noise: ≤10%
- Pulse front: ≤10ns
- Display: 5.7" TFT color LCD, 640×480 resolution
- Probe selection: straight probe, angle probe, penetrating probe, climbing probe
- Gates: incoming wave gate, lost wave gate, single gate reading, double gate reading
- Alarms: incoming wave alarm, lost wave alarm, double gate alarm, buzzer alarm, LED light alarm
- Interfaces: Q9 (BNC), USB 2.0, VGA
- Operating temperature: -20~50°C
- Relative humidity: 20~95%
- Power: rechargeable lithium-ion battery
- Dimensions (L×W×H): 228×140×42mm
- Weight: 1.0kg
- Functions: built-in flaw detection standards (direct call), auto calibration (probe zero offset, probe angle/K value, material velocity), peak hold, flaw locating (depth/vertical) & sound path prediction, flaw discrimination & sizing with DAC/AVG, AWS D1.1, automatic rating, gate magnify, continuous waveform recording, scan freeze, peak mark
- Standard delivery: main unit (1pc), single-element straight probe UFD-F70 (1pc), single-element angle probe UFD-F71 (1pc), probe connecting cable (2pcs), USB cable (1pc), mainframe backpack (1pc), USB disk (1pc), power adapter (1pc)
- Probe specifications (reference): UFD-F70 (included) 2.5MHz Ø20mm straight, 90° · UFD-F71 (included) 2.5MHz 13×13mm angle, 63.4° · Optional: UFD-F72 5.0MHz Ø10mm dual-element straight 90°, UFD-F73 5.0MHz Ø10mm straight 90°, UFD-F74 2.5MHz 9×9mm angle 45°, UFD-F75 2.5MHz 9×9mm angle 71.6°
Description

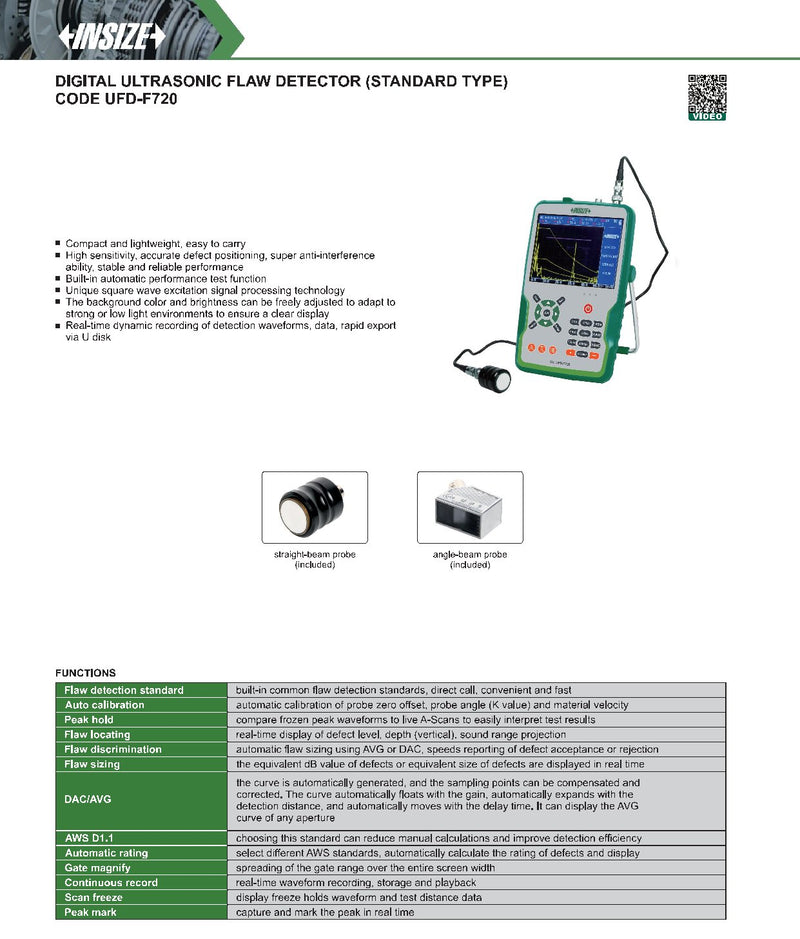

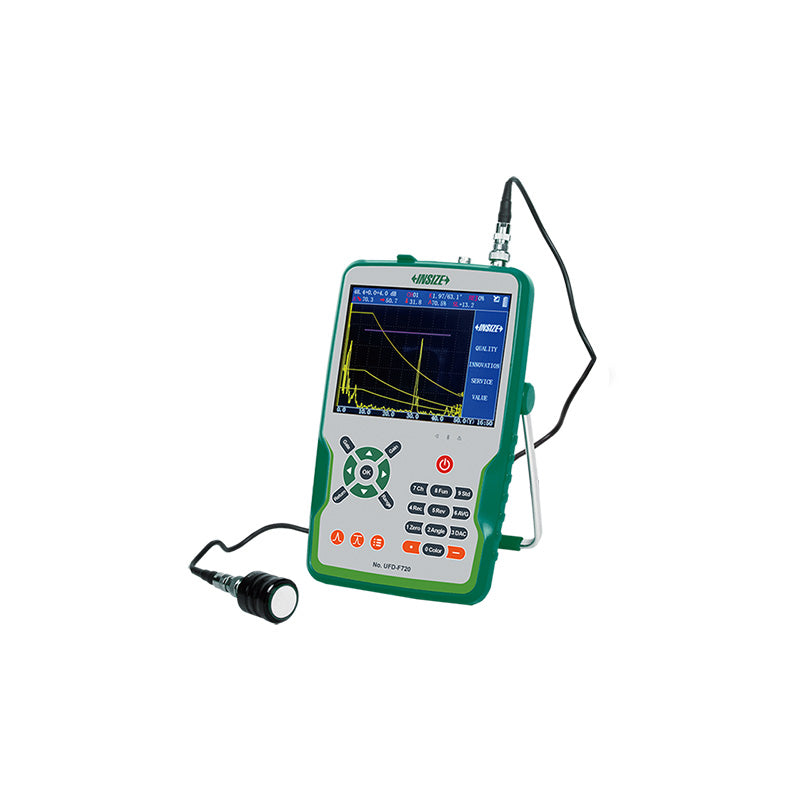

The UFD-F720 is a digital ultrasonic flaw detector (UT) for non-destructive testing of materials. It is used to detect, locate, evaluate, and size internal discontinuities (e.g., cracks, inclusions, weld defects) using A-scan display, DAC/AVG functions, and AWS D1.1 support. Suitable for inspections of welds, metal structures, and industrial maintenance, with waveform recording and data export via USB.
| Code | Range | Frequency | Vertical linearity | Availability | Price excl. VAT | Certificate | Cart |
|---|---|---|---|---|---|---|---|
| UFD-F720 | 0~15000mm | 0.4~20MHz | ≤3.0% | On Order |
€10.822,00
|
