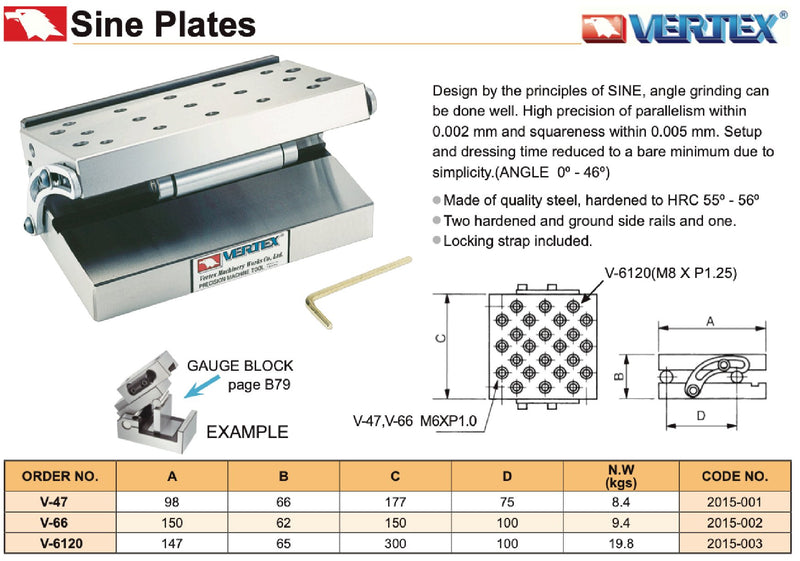

Specifications
- Type: Sine plate
- Angle range: 0° to 46°
- Parallelism accuracy: within 0.002 mm
- Squareness accuracy: within 0.005 mm
- Material: quality steel
- Hardness: HRC 55°–56°
- Rails: 2 hardened and ground side rails
- Hole thread: M6×P1.0 (V-47, V-66) / M8×P1.25 (V-6120)
- Dimensions (A×B×C×D): A 98–150 mm, B 62–66 mm, C 150–300 mm, D 75–100 mm
- Net weight (N.W.): 8.4–19.8 kg
- Included: locking strap
- Catalog codes: V-47, V-66, V-6120
Description

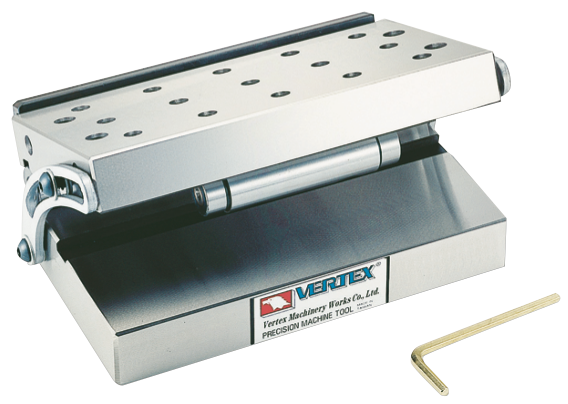

The VERTEX V-47 / V-66 / V-6120 sine plate is a precision setup tool used to generate and set accurate angles (0°–46°) for grinding and machining operations. It is used with gauge blocks to raise/tilt the top surface to a calculated height, enabling accurate angular grinding and repeatable workpiece setup.
| Code | A | B | C | Availability | Price excl. VAT | Cart |
|---|---|---|---|---|---|---|
| V-47 | 98 | 66 | 177 | On Order |
€281,00
|
|
| V-6120 | 147 | 65 | 300 | On Order |
€701,00
|
|
| V-66 | 150 | 62 | 150 | On Order |
€302,00
|
