Specifications
- Type: Magnetic Sine Plate with fine pole
- Magnet: Permanent magnetic chuck
- Magnetic strength: 700 GAUSS
- ON/OFF control: Removable handle for positive on/off control
- Included: Side rails and end rails
- Angle setting steps: 200 minute angle steps
- Geometry tolerance: 0.005 mm (0.0002") in squareness, parallelism, and roll center distances
- Pole pitch (P): 2.5 (1+1.5)
- Angle (ANGLE): 0'–46'
- Dimensions (across models): A: 200–366 mm, B: 102–152 mm, C: 87 mm
- Net weight (N.W.): 13.1–30.3 kg
- Model codes: V-47MF, V-66MF, V-612MF
Description

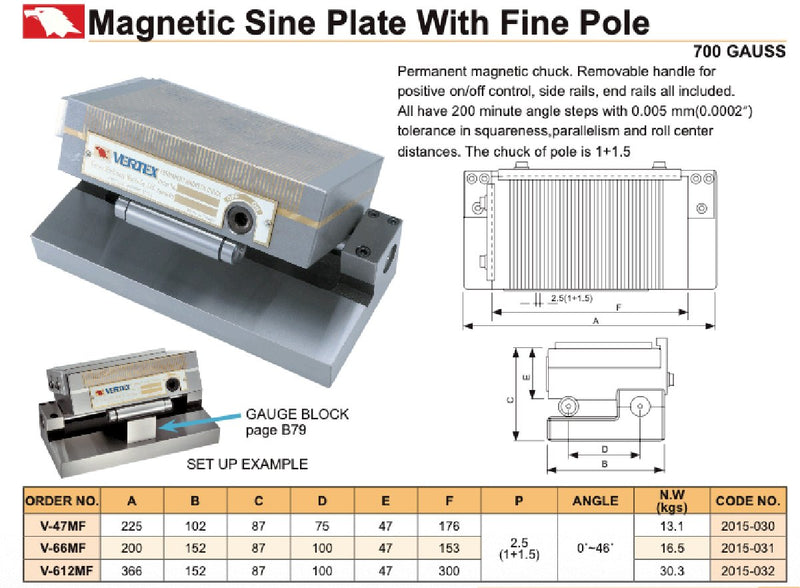

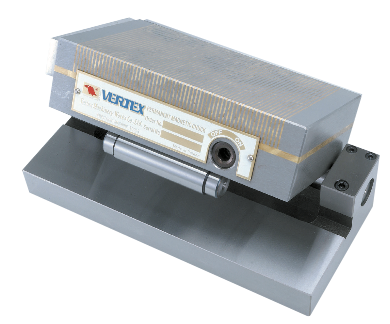

The 700 GAUSS fine-pole magnetic sine plate is used to hold ferromagnetic workpieces and set precise angles for surface grinding and other precision machining setups. The permanent magnetic chuck with removable on/off handle enables fast clamping and release, while the included side and end rails support stable workpiece positioning.
| Code | A mm | B mm | C mm | Availability | Price excl. VAT | Cart |
|---|---|---|---|---|---|---|
| V-66MF | 200 | 152 | 87 | On Order |
€1.096,00
|
|
| V-47MF | 225 | 102 | 87 | On Order |
€1.021,00
|
|
| V-612MF | 366 | 152 | 87 | On Order |
€1.728,00
|
