Specifications

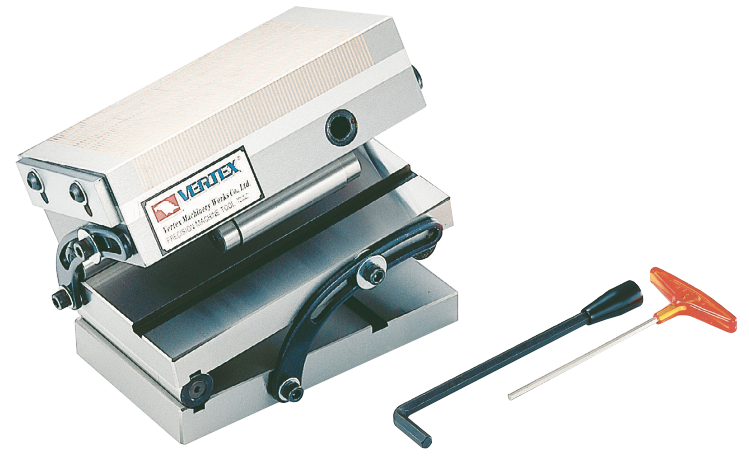

- Type: Double Way Sine Plate (Sine Table) with permanent magnetic chuck
- Magnetic strength: 690 GAUSS
- Angle range: 0° ~ 60°
- Angle setting: using gauge blocks
- Locking: positive locking at any angle without distortion (locking device mounted on the base)
- Construction material: hardened alloy tool steel
- Dimensions (Unit: mm): A: 100–150, B: 123.7–138, C: 150–300
- Net weight (N.W.): 15.2–34.7 kg
- Catalog codes: V-47MS, V-66MS, V-612MS
Description
A double way sine plate with a permanent magnetic chuck for accurate angular setup and holding of workpieces during grinding or angled machining. It supports angle setting up to 60° using gauge blocks and includes a positive locking mechanism to keep the set angle stable.

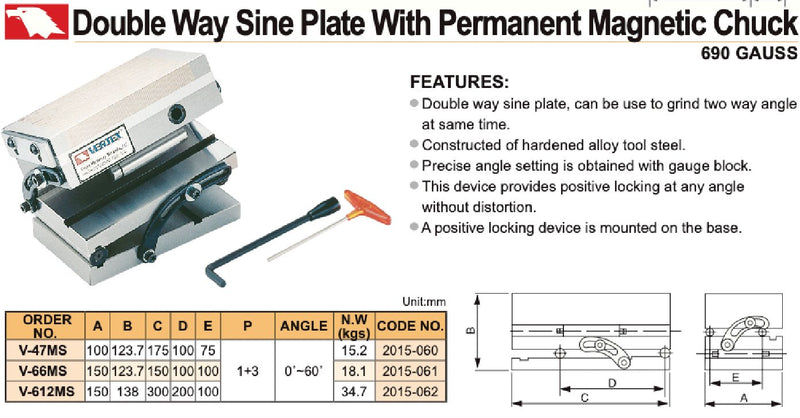

| Code | A mm | B mm | C mm | Availability | Price excl. VAT | Cart |
|---|---|---|---|---|---|---|
| V-47MS | 100 | 123.7 | 175 | On Order |
€845,00
|
|
| V-66MS | 150 | 123.7 | 150 | On Order |
€1.099,00
|
|
| V-612MS | 150 | 138 | 300 | On Order |
€1.420,00
|
