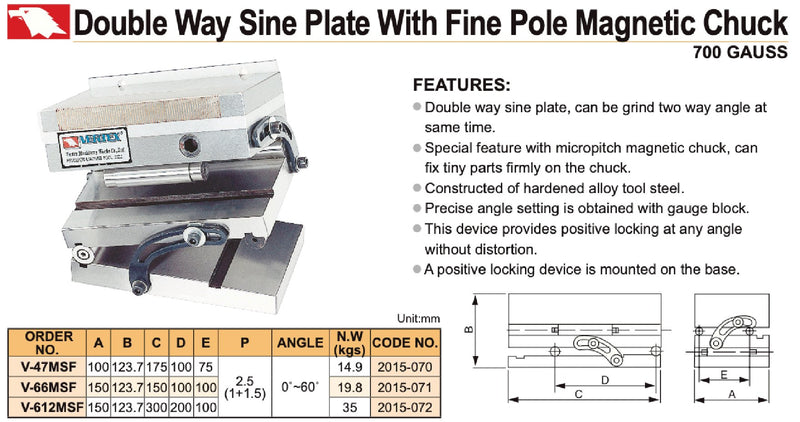

Specifications
- Type: Double way sine plate with fine pole magnetic chuck
- Magnetic force: 700 Gauss
- Angle range: 0°~60°
- Angle setting: by gauge blocks
- Locking: positive locking at any angle without distortion
- Construction material: hardened alloy tool steel
- Pole pitch (P): 2.5 mm (1+1.5)
- Dimensions (unit: mm):
- A (mm): 100 to 150
- B (mm): 123.7
- C (mm): 150 to 300
- D (mm): 100 to 200
- E (mm): 75 to 100
- Net weight (N.W.): 14.9 to 35 kg
- Catalog codes: V-47MSF, V-66MSF, V-612MSF
- Code No.: 2015-070 / 2015-071 / 2015-072
Description

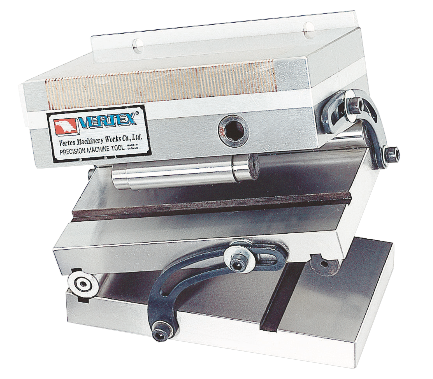

This double way sine plate with a fine pole magnetic chuck is used for accurate angle setting and secure workholding during surface grinding and other precision machining operations. It provides 0°~60° angle adjustment with positive locking, while the fine pole magnetic surface helps hold small parts firmly on the chuck.
| Code | A mm | B mm | C mm | Availability | Price excl. VAT | Cart |
|---|---|---|---|---|---|---|
| V-47MSF | 100 | 123.7 | 175 | On Order |
€986,00
|
|
| V-66MSF | 150 | 123.7 | 150 | On Order |
€1.116,00
|
|
| V-612MSF | 150 | 123.7 | 300 | On Order |
€1.831,00
|
